15416
The longest rifle cases on the market. Suitable to accommodate the most used long range rifles and accessories. Wider latches with safe button. Double automatic purge valves. Self-oiling free running wheels.
Models
![](https://www.explorercases.com/wp-content/themes/explorer-cases/images/xscheme.png.pagespeed.ic.rfgIaNADpU.png)
Internal dimensions
L Length
60 5/8 in
W Width
14 13/16 in
D Depth
6 5/16 in
Lid
1 5/8 in
Base
4 5/8 in
External dimensions
L Length
64 1/8 in
W Width
17 15/16 in
D Depth
7 3/16 in
Other data
Weight empty
24.91 lbs
Weight with foam
29.54 lbs
Weight with custom foam
lbs
Volume
24.54 gal
Buoyancy
135.80 lbs/max
Operating temperature
°F min -27.4 / max +194
![](https://www.explorercases.com/wp-content/themes/explorer-cases/images/xscheme.png.pagespeed.ic.rfgIaNADpU.png)
Internal dimensions
L Length
1540 mm
W Width
377 mm
D Depth
160 mm
Lid
42 mm
Base
118 mm
External dimensions
L Length
1629 mm
W Width
456 mm
D Depth
183 mm
Other data
Weight empty
11.30 Kg
Weight with foam
13.40 Kg
Weight with custom foam
Kg
Volume
93 lt
Buoyancy
61.60 Kg/max
Operating temperature
°C min -33 / max +90
![](https://www.explorercases.com/wp-content/uploads/xNEW-VALVE_lkXlUOV-300x300.jpg.pagespeed.ic.dSg0dF-0_F.jpg)
AUTOMATIC VALVE
Automatic pressure release valve.
![](https://www.explorercases.com/wp-content/uploads/xNEW-WHEELS_QV7T0hD-300x300.jpg.pagespeed.ic.BhuTvalp7C.jpg)
SELF OILING FREE RUNNING WHEELS
![](https://www.explorercases.com/wp-content/uploads/xcorrproofhinges_1333441863-300x300.jpg.pagespeed.ic.lG3CNbnqFR.jpg)
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
![](https://www.explorercases.com/wp-content/uploads/xinternalslots_1333442533-300x300.jpg.pagespeed.ic.rt0NdxWij9.jpg)
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
![](https://www.explorercases.com/wp-content/uploads/xlargefronthandle_1333442674-300x300.jpg.pagespeed.ic.BSAYqaR5Xv.jpg)
LARGE FRONT HANDLE
![](https://www.explorercases.com/wp-content/uploads/xlatch2_1333442910-300x300.jpg.pagespeed.ic.7JtN0QaQ_Y.jpg)
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
![](https://www.explorercases.com/wp-content/uploads/xoring_1333443296-300x300.jpg.pagespeed.ic.n3j3EhoHP6.jpg)
SEALING O-RING
(Art. NEOSEAL + nr. art.)
![](https://www.explorercases.com/wp-content/uploads/xpvcidlabel1_1333443837-300x300.jpg.pagespeed.ic.9lL13y_x7k.jpg)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
![](https://www.explorercases.com/wp-content/uploads/xsidehandles_1333445797-300x300.jpg.pagespeed.ic.poc9rIGGVW.jpg)
TWO MAN LIFT SIDE HANDLES
![](https://www.explorercases.com/wp-content/uploads/xgbag154-300x167.jpg.pagespeed.ic.SQTlIucdDF.jpg)
GBAG 154
PADDED GUN BAG FOR CASE 15416
Padded gunbag to protect long guns or sniper rifles. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 154 is designed to perfectly fit into Explorer Cases model 15416. The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper for the main compartment. The main compartment features two neoprene hook-and-loop side flaps and adjustable straps to secure firearms. The front central compartment is equipped with adjustable interior straps to secure rifle position. The two side smaller pouches are designed to storage accessories and ammunitions. Both the main and front compartments are padded on all sides to protect and transport critical gear. This long gun bag features top and bottom compression straps and come with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band. Full-opening zipper for shooting mat configuration.
The gunbag can easily become a backpack by fixing the BACKPACK KIT in its rear side (see BACKPACK KIT accessory in BACKPACK SYSTEMS section for more details).
![](https://www.explorercases.com/wp-content/uploads/xTOP-ENVELOPE-15-300x300.jpg.pagespeed.ic.5tKuLvjFLJ.jpg)
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
![](https://www.explorercases.com/wp-content/uploads/xTOP-ENVELOPE-13-300x300.jpg.pagespeed.ic.61Ukn0b4BB.jpg)
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
![](https://www.explorercases.com/wp-content/uploads/xexplorer_15416_foam_1489579850-300x300.jpg.pagespeed.ic.j17F5370HO.jpg)

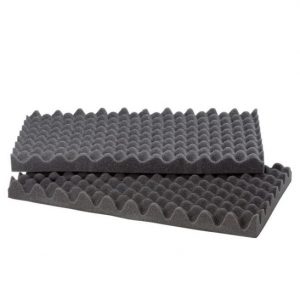

FOAM.15416
FOAM SET FOR CASE 15416
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 15416 model.
Color: dark grey.
DOWNLOAD PDF
![](https://www.explorercases.com/wp-content/uploads/xexplpadlock_1333460756-300x300.jpg.pagespeed.ic.o1ni1oBrqp.jpg)
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
![](https://www.explorercases.com/wp-content/uploads/xdigitallock_1333706510-300x300.jpg.pagespeed.ic.vhlwCdsINQ.jpg)
KIT.DL
DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840
Kit includes 2 pcs.
![](https://www.explorercases.com/wp-content/uploads/xexplcombilock_1333461061-300x300.jpg.pagespeed.ic.sfe0K57j8r.jpg)
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
![](https://www.explorercases.com/wp-content/uploads/xblindinsert_1333705489-300x300.jpg.pagespeed.ic.0FPt4h4yUy.jpg)
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
![](https://www.explorercases.com/wp-content/uploads/xexpltsadigilock1_1333461389-300x300.jpg.pagespeed.ic.ztFGQGXe55.jpg)
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
![](https://www.explorercases.com/wp-content/uploads/xkitsuppexpl_1333705168-300x300.jpg.pagespeed.ic.F5eqCwkNp7.jpg)
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
![](https://www.explorercases.com/wp-content/uploads/xkitsuppplast_1333705301-300x300.jpg.pagespeed.ic.8dvXbpG3b4.jpg)
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
![](https://www.explorercases.com/wp-content/uploads/xkin-1214-300x300.jpg.pagespeed.ic.R8PIv2fikE.jpg)
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
![](https://www.explorercases.com/wp-content/uploads/xkin-1120-300x300.jpg.pagespeed.ic.dDsQ2d1H6F.jpg)
KIN.1120
Wheels for model 15416
Includes:
2 self-oiling wheels
2 metal washers
2 snap rings (Seeger)
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin-0969-300x300.jpg.pagespeed.ic.zuTTF936iJ.jpg)
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
![](https://www.explorercases.com/wp-content/uploads/kin_1348231172-300x225.jpg)
KIN.0426
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 orange handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/kin_1348231663-300x238.jpg)
KIN.0880
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 sand handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/kin_1341842671-300x223.jpg)
KIN.0412
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 black handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin_1341843246-300x167.jpg.pagespeed.ic.H0XEmcSw-U.jpg)
KIN.0425
Handle for mod. 7630-7726-7745-11413-13513-13527-15416-10826-10840-MUB78
Includes:
1 black handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin_1351240135-300x259.jpg.pagespeed.ic.7my8K0WFj4.jpg)
KIN.0881
Handle for mod. 7630-7726-7745-11413-13513-13527-15416-10826-10840-MUB78
Includes:
1 sand handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/kin_1348231430-300x238.jpg)
KIN.0448
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 military green handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin_1348233963-300x148.jpg.pagespeed.ic.dq4momk1gZ.jpg)
KIN.0424
Handle for models 7630-7726-7745-11413-13513-13527-10826-10840-15416-MUB78
Includes:
1 military green handle
2 fixing pins
