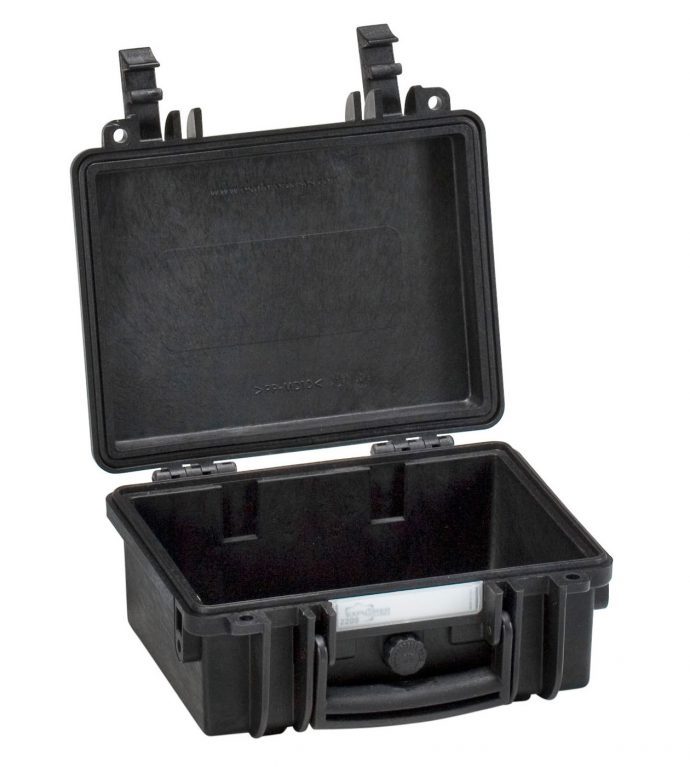

2209
Compact boxes for valuables and fragile items. High resistance body structure made in PP. Waterproof and crushproof. Resistant to dust and humidity.
Internal dimensions
L Length
8 11/16 in
W Width
6 5/16 in
D Depth
3 3/4 in
Lid
13/16 in
Base
2 15/16 in
External dimensions
L Length
9 11/16 in
W Width
8 7/16 in
D Depth
4 7/16 in
Other data
Weight empty
1.94 lbs
Weight with foam
2.18 lbs
Weight with custom foam
lbs
Volume
0.79 gal
Buoyancy
5.07 lbs/max
Operating temperature
°F min -27.4 / max +194
Internal dimensions
L Length
220 mm
W Width
160 mm
D Depth
95 mm
Lid
20 mm
Base
75 mm
External dimensions
L Length
246 mm
W Width
215 mm
D Depth
112 mm
Other data
Weight empty
0.88 Kg
Weight with foam
0.99 Kg
Weight with custom foam
Kg
Volume
3.30 lt
Buoyancy
2.30 Kg/max
Operating temperature
°C min -33 / max +90
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LATCH
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
OPTIONAL SHOULDER STRAP (universal)
(art. SHOULDERKIT.U)
DIV2209
PADDED DIVIDER FOR 2209
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
SHOULDERKIT.U
ADJUSTABLE SHOULDER KIT
The kit is composed by: shoulder strap with plastic endings, 4 threaded knots, 2 metal plates.
(min. extension 106 cm, max. extension 201 cm). The strap comes with the Explorer logo.
Suitable for models: 1908, 1913, 2209, 2214, 3005, 4412, 4419, 5117, 9413, 11413 and 13513.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
FOAM.2209
FOAM SET FOR CASE 2209
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 2209 model.
Color: dark grey.
DOWNLOAD PDF
KIN.0525
Manual pressure release valve for models 1908-1913-2209-2214-3005
Includes:
1 black purge valve (+ o-ring + pin)
1 threaded bush
1 snap ring (Seeger)
KIN.0497
Name tag holder for models 1908-1913-2209-2214-3005-5140
Includes:
1 transparent PP name tag holder
