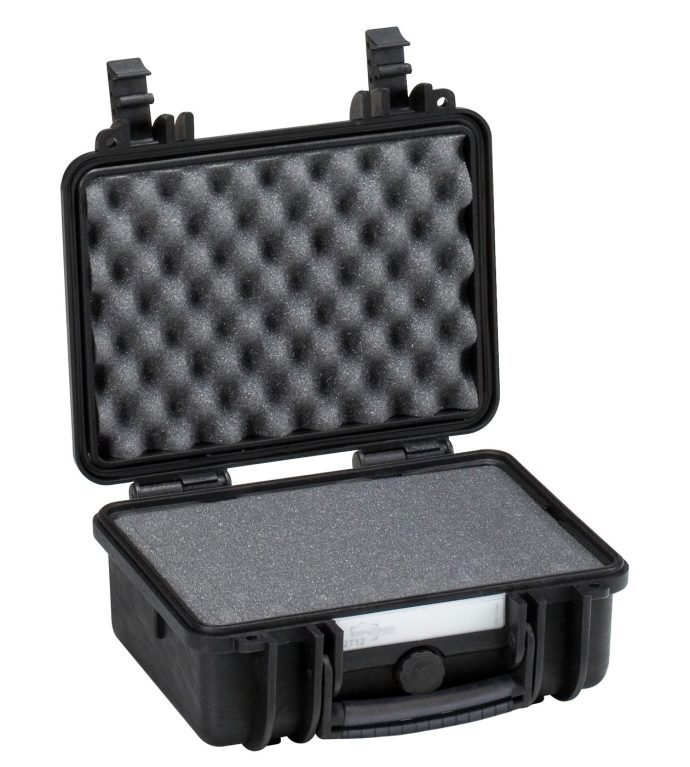

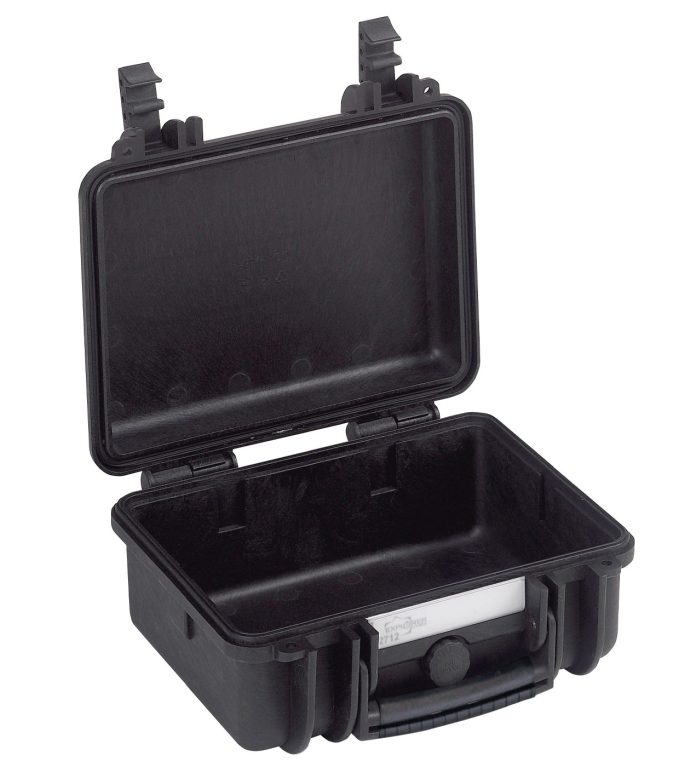

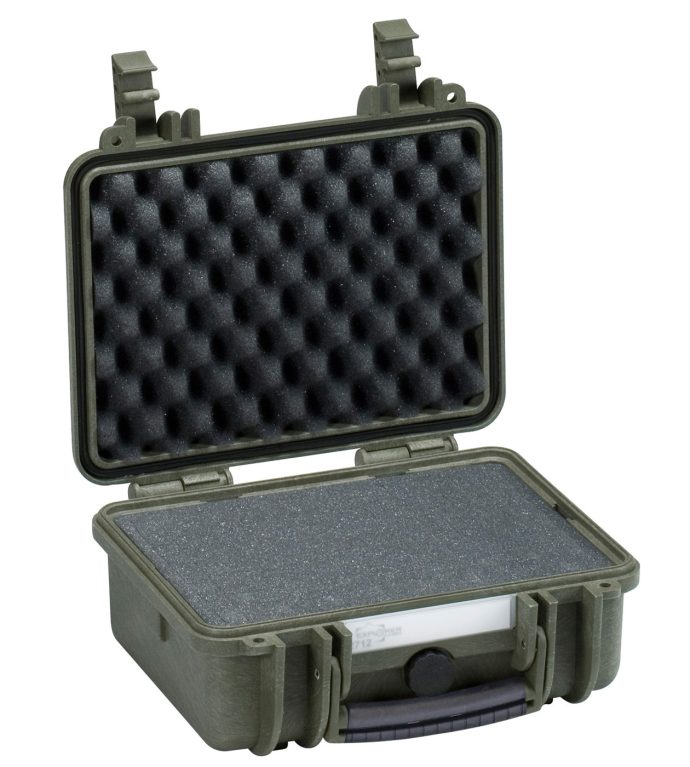

2712
Shockproof cases realized in copolymer polypropylene material. Removable lid and counterbalance supports. Temperature rating from -33 °C to +90 °C.
Internal dimensions
L Length
10 7/8 in
W Width
7 7/8 in
D Depth
4 3/4 in
Lid
1 3/8 in
Base
3 3/8 in
External dimensions
L Length
12 in
W Width
10 5/8 in
D Depth
5 11/16 in
Other data
Weight empty
3.57 lbs
Weight with foam
4.03 lbs
Weight with custom foam
lbs
Volume
1.58 gal
Buoyancy
9.25 lbs/max
Operating temperature
°F min '-27.4 / max '+194
Internal dimensions
L Length
276 mm
W Width
200 mm
D Depth
120 mm
Lid
35 mm
Base
85 mm
External dimensions
L Length
305 mm
W Width
270 mm
D Depth
144 mm
Other data
Weight empty
1.62 Kg
Weight with foam
1.83 Kg
Weight with custom foam
Kg
Volume
6.60 lt
Buoyancy
4.20 Kg/max
Operating temperature
°C min '-33 / max '+90
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LATCH
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
LID CAN BE SET TO SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
COUNTERBALANCE SUPPORTS
(in certain models)
DIV2712
PADDED DIVIDER FOR 2712
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
BAG-R
PADDED BAG WITH ADJUSTABLE DIVIDERS
Highly durable padded bag with rubber coated handle and waterproof zipper with lockable Velcro pull zipper. Practical external front pouch for documents, removable shoulder strap and rubber feet on the bottom to grant better grip.
Internal adjustable padded dividers for flexible configuration.
Ideal to protect sensitive equipment (ie electronic, photographic, broadcasting, medical etc.).
Suitable for case 2712.
Color: black/red.
PANEXPL27
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 2712 and 2717.
Color: black.
FOAM.2712
FOAM SET FOR CASE 2712
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 2712 model.
Color: dark grey.
DOWNLOAD PDF
PANRING27.USA
PANEL RING FOR CASE 2712 AND 2717
Includes Imperial system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
PANRING27
PANEL RING FOR CASE 2712 AND 2717
Includes Metric system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
KIN.0496
Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78
Includes:
1 transparent name tag holder
KIN.0495
Manual pressure release valve for models from 2712 up (except mod. 3005)
Includes:
1 black purge valve (+ o-ring + pin)
1 threaded bush
1 snap ring (Seeger)
