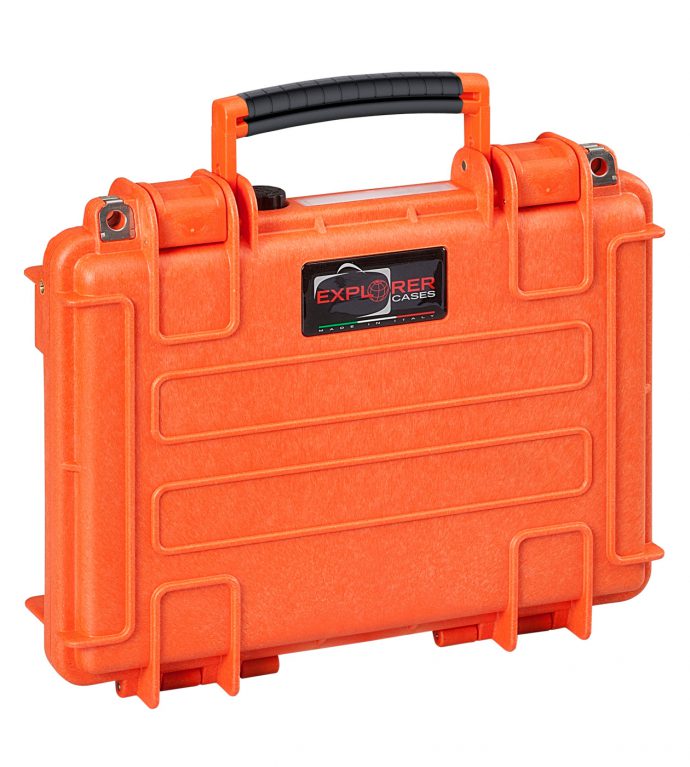

3005
Case size makes it the ideal solution to store one ipad/compact notebook with accessories. It can be stored in vertical position. Retractable handle. Padlockable points.
Models
Internal dimensions
L Length
11 13/16 in
W Width
8 1/4 in
D Depth
2 5/16 in
Lid
13/16 in
Base
1 1/2 in
External dimensions
L Length
12 13/16 in
W Width
10 9/16 in
D Depth
2 15/16 in
Other data
Weight empty
2.42 lbs
Weight with foam
2.64 lbs
Weight with custom foam
lbs
Volume
1.05 gal
Buoyancy
4.62 lbs/max
Operating temperature
°F min +194 / max -27.4
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
COUNTERBALANCE SUPPORTS
(in certain models)
SHOULDERKIT.U
ADJUSTABLE SHOULDER KIT
The kit is composed by: shoulder strap with plastic endings, 4 threaded knots, 2 metal plates.
(min. extension 106 cm, max. extension 201 cm). The strap comes with the Explorer logo.
Suitable for models: 1908, 1913, 2209, 2214, 3005, 4412, 4419, 5117, 9413, 11413 and 13513.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1126
Rubber coated handle for model 3005
Includes:
1 orange handle
2 fixing pins
KIN.1124
Rubber coated handle for model 3005
Includes:
1 desert tan handle
2 fixing pins
KIN.1122
Rubber coated handle for model 3005
Includes:
1 military green handle
2 fixing pins
KIN.1117
Rubber coated handle for model 3005
Includes:
1 black handle
2 fixing pins
KIN.0497
Name tag holder for models 1908-1913-2209-2214-3005-5140
Includes:
1 transparent PP name tag holder
