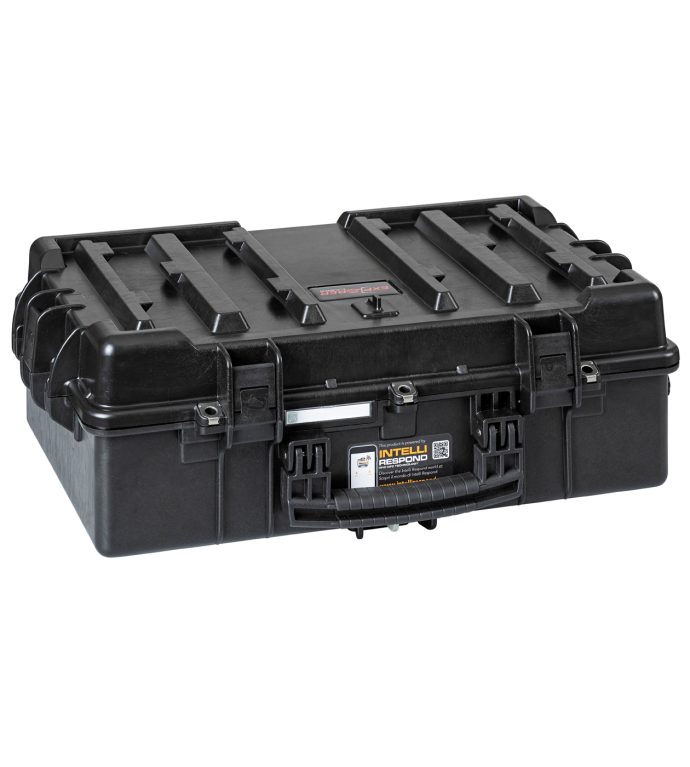

5116

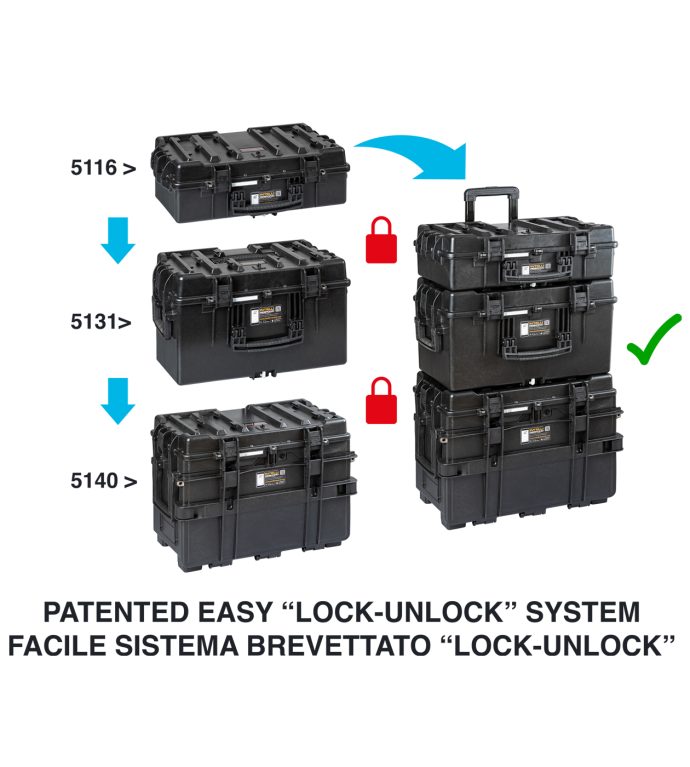

The new 5116 and 5131 models can be stacked with each other and/or on top of the Explorer 5140, the popular tool chest with drawers, creating a mobile workstation with even greater loading capacity for tools, spare parts and large components, also sharing with the latter its trolley system with wheels and telescopic handle.
Internal dimensions
L Length
20 5/16 in
W Width
11 5/8 in
D Depth
6 5/16 in
Lid
1 15/16 in
Base
4 5/16 in
External dimensions
L Length
23 1/16 in
W Width
14 1/2 in
D Depth
7 13/16 in
Other data
Weight empty
7.27 lbs
Weight with foam
8.59 lbs
Weight with custom foam
lbs
Volume
6.44 gal
Buoyancy
33.28 lbs/max
Operating temperature
°F min -27.4 / max 194
LID CAN BE SET SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
PULL RELEASE LATCH
New pull release latch grants additional safety and avoids accidental opening
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
SEALING O-RING
(Art. NEOSEAL + nr. art.)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
SOFT GRIP RUBBER HANDLE
Load tested handle, reinforced with corrosion proof steel pins
STAINLESS STEEL REINFORCED PADLOCKABLE POINTS
4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.
ABILITY TO STACK
The special design of the bottom and the lid feet, grants a perfect stackability.
AUTOMATIC PURGE VALVE
Automatic pressure release valve.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
