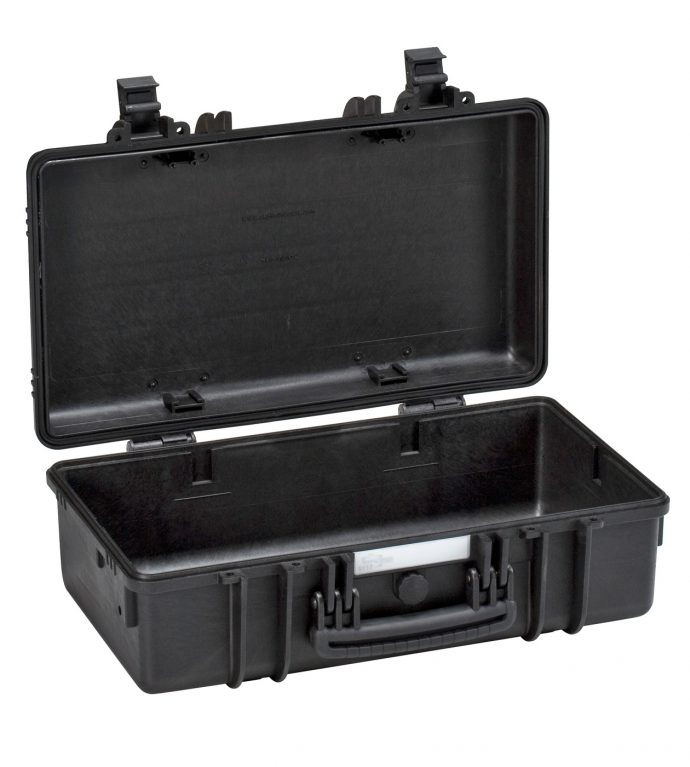

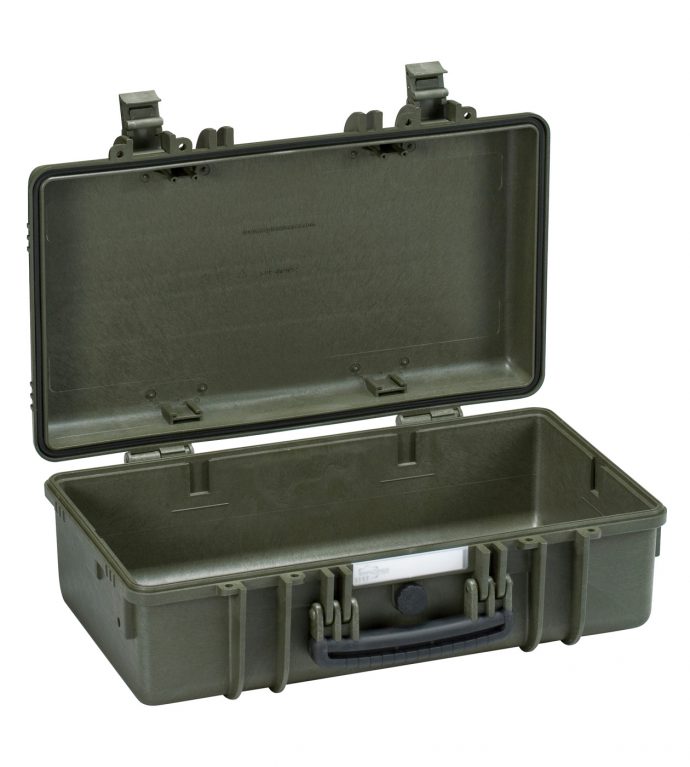

5117
Crush-proof medium-size cases with reinforced corners and ergonomic rubber handle. Lid can be set to slide off. Manual pressure release valve.
![](https://www.explorercases.com/wp-content/themes/explorer-cases/images/xscheme.png.pagespeed.ic.rfgIaNADpU.png)
Internal dimensions
L Length
20 3/8 in
W Width
10 7/8 in
D Depth
6 13/16 in
Lid
1 15/16 in
Base
4 13/16 in
External dimensions
L Length
21 1/2 in
W Width
13 11/16 in
D Depth
7 3/4 in
Other data
Weight empty
8.37 lbs
Weight with foam
9.92 lbs
Weight with custom foam
lbs
Volume
6.34 gal
Buoyancy
34.83 lbs/max
Operating temperature
°F min -27.4 / max +194
![](https://www.explorercases.com/wp-content/uploads/xTOP-ENVELOPE-15-300x300.jpg.pagespeed.ic.5tKuLvjFLJ.jpg)
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
![](https://www.explorercases.com/wp-content/uploads/xTOP-ENVELOPE-13-300x300.jpg.pagespeed.ic.61Ukn0b4BB.jpg)
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
![](https://www.explorercases.com/wp-content/uploads/xCOVERS_4Ea71pp-270x300.jpg.pagespeed.ic.EZ0oVVmrd0.jpg)
COV51
TOP COVER FOR DIV51
Top covers available for larger models: they can be easily fixed on the dividers by Velcro strips. Ideal to protect and keep items in place.
![](https://www.explorercases.com/wp-content/uploads/xDIV51_S9bDATN-270x300.jpg.pagespeed.ic.4lkgtJMcny.jpg)
DIV51
PADDED DIVIDER FOR 5117-5122
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
![](https://www.explorercases.com/wp-content/uploads/xpanring_1333709838-300x300.jpg.pagespeed.ic.y6QsVgdeAK.jpg)
PANRING51.USA
PANEL RING FOR CASE 5117 AND 5122
Includes Imperial system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
![](https://www.explorercases.com/wp-content/uploads/xpanexpl51_1333720671-300x300.jpg.pagespeed.ic.KGk2rrSK4B.jpg)
PANEXPL51
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 5117 and 5122.
Color: black.
![](https://www.explorercases.com/wp-content/uploads/xbag-b-300x300.jpg.pagespeed.ic._1cm28UMIc.jpg)
BAG-B
PADDED BAG WITH ADJUSTABLE DIVIDERS
Highly durable padded bag with rubber coated handle and waterproof zipper with lockable Velcro pull zipper. Practical external front pouch for documents, removable shoulder strap and rubber feet on the bottom to grant better grip.
Internal adjustable padded dividers for flexible configuration.
Ideal to protect sensitive equipment (ie electronic, photographic, broadcasting, medical etc.).
Suitable for cases 5117 and 5122.
Color: black/red.
![](https://www.explorercases.com/wp-content/uploads/xpanring_1333709161-300x300.jpg.pagespeed.ic.ah8KuOI5a7.jpg)
PANRING51
PANEL RING FOR CASE 5117 AND 5122
Includes Metric system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
![](https://www.explorercases.com/wp-content/uploads/xshoulderkit_u_135_1333702991-300x300.jpg.pagespeed.ic.ElGDaQ6CLL.jpg)
SHOULDERKIT.U
ADJUSTABLE SHOULDER KIT
The kit is composed by: shoulder strap with plastic endings, 4 threaded knots, 2 metal plates.
(min. extension 106 cm, max. extension 201 cm). The strap comes with the Explorer logo.
Suitable for models: 1908, 1913, 2209, 2214, 3005, 4412, 4419, 5117, 9413, 11413 and 13513.
![](https://www.explorercases.com/wp-content/uploads/xexplpadlock_1333460756-300x300.jpg.pagespeed.ic.o1ni1oBrqp.jpg)
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
![](https://www.explorercases.com/wp-content/uploads/xexplcombilock_1333461061-300x300.jpg.pagespeed.ic.sfe0K57j8r.jpg)
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
![](https://www.explorercases.com/wp-content/uploads/xblindinsert_1333705489-300x300.jpg.pagespeed.ic.0FPt4h4yUy.jpg)
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
![](https://www.explorercases.com/wp-content/uploads/xexpltsadigilock1_1333461389-300x300.jpg.pagespeed.ic.ztFGQGXe55.jpg)
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
![](https://www.explorercases.com/wp-content/uploads/xkitsuppexpl_1333705168-300x300.jpg.pagespeed.ic.F5eqCwkNp7.jpg)
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
![](https://www.explorercases.com/wp-content/uploads/xkitsuppplast_1333705301-300x300.jpg.pagespeed.ic.8dvXbpG3b4.jpg)
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
![](https://www.explorercases.com/wp-content/uploads/xfoam_1333547205-300x300.jpg.pagespeed.ic.jFSrQRN7Q3.jpg)
FOAM.5117
FOAM SET FOR CASE 5117

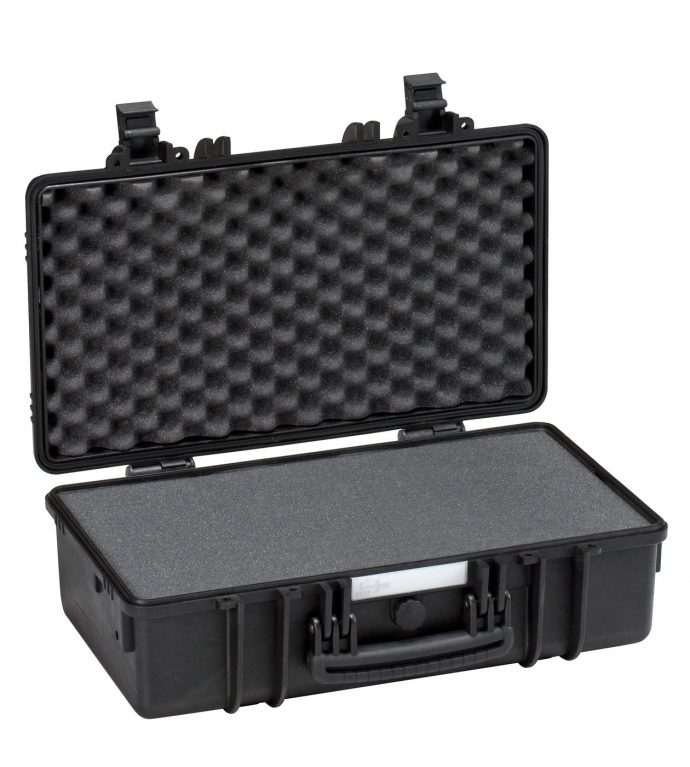

Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 5117 model.
Color: dark grey.
DOWNLOAD PDF
![](https://www.explorercases.com/wp-content/uploads/xbackpackback_1333462455-300x300.jpg.pagespeed.ic.U9_cjH9kx6.jpg)
BACKPACK M
HANDY BACKPACK CARRYING SYSTEM FOR CASES
Made of robust tear resistant polyester. Designed with adjustable and comfortable padded shoulder straps and belt.
Provided with an external pocket for small accessories, with Velcro strap.
Ideal wherever a free hand movement is required, like in outdoor activities, extreme sports, emergency, rescue, trekking, industrial field, etc.
Suitable for models 3317, 3818 and 5117.
Color: black.
![](https://www.explorercases.com/wp-content/uploads/xkin_1341841920-300x179.jpg.pagespeed.ic.DXFJk3iiaL.jpg)
KIN.0479
Rubber coated handle for mod. 3818-4412-4419-5117-5122
Includes:
1 black handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin_1348226537-300x196.jpg.pagespeed.ic.5dlFbbLjoC.jpg)
KIN.0469
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 military green handle
2 fixing pins
![](https://www.explorercases.com/wp-content/uploads/xkin_1351245876-300x171.jpg.pagespeed.ic.LlK5kiQ0qi.jpg)
KIN.0496
Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78
Includes:
1 transparent name tag holder
![](https://www.explorercases.com/wp-content/uploads/xkin_1348224708-300x191.jpg.pagespeed.ic.BEyww5zaRa.jpg)
KIN.0468
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 orange handle
2 fixing pins
