5140.B.6U
6U rack-size waterproof case.
Units can fit horizontally in the front side of the case, or vertically from the top of the case.
Practical lightweight and economical solutions to carry small rack devices up to 6U (units).
This case can be used in horizontal mode up to 6U or in vertical mode up to 5U.
The internal hardware can easily be reconfigured for either ones of the two versions.
Handles on both side and wheels plus trolley handle in the rear allow for a practical carrying of this case.
The provided M6 Cage Nuts and screws grants practical mounting of any device.

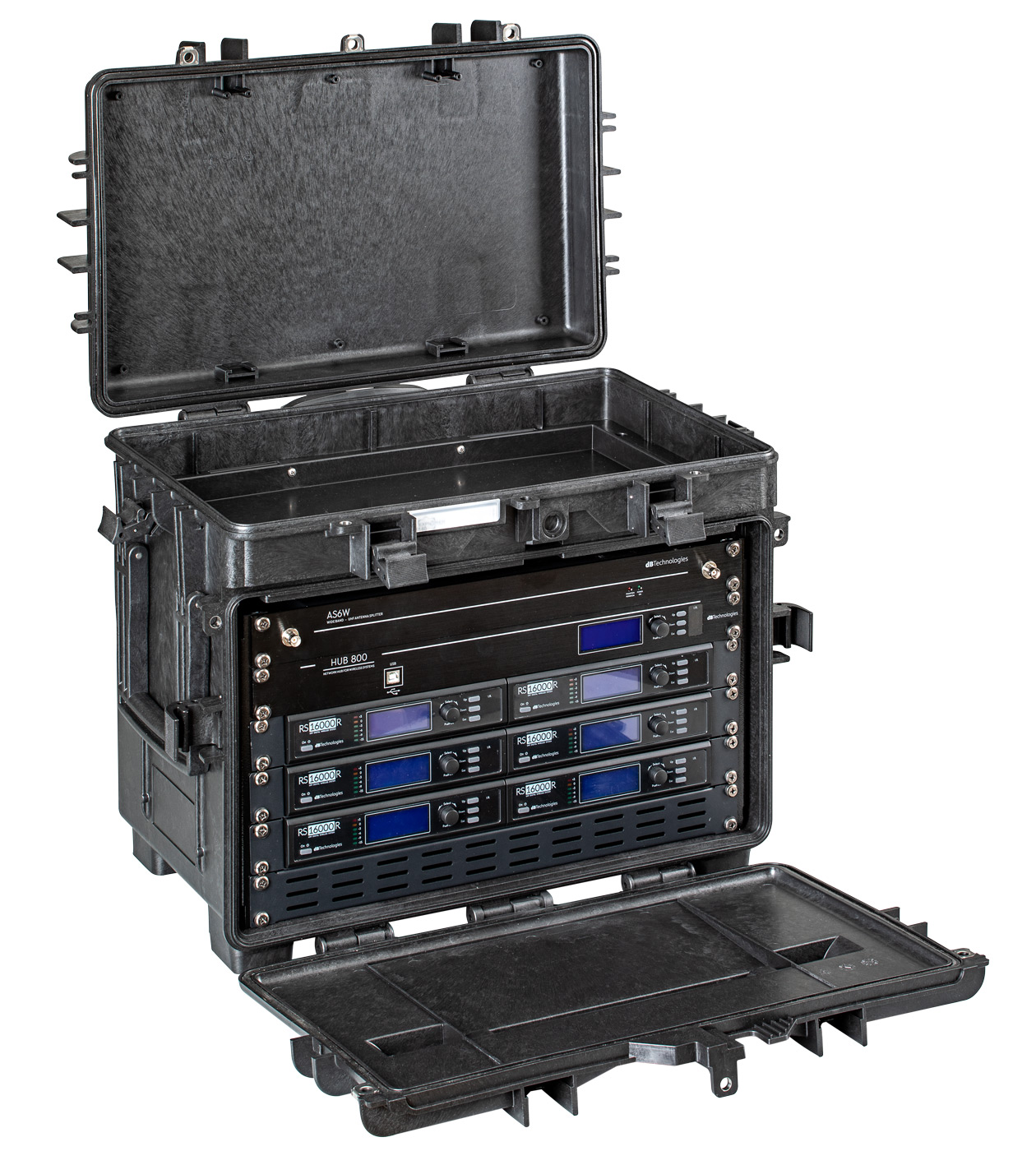

HORIZONTAL USE
RACK DEPTH: 265 mm (245 mm if backward positioning)
FRONT LID DEPTH: 20 mm (40 mm if backward positioning)
VERTICAL USE
RACK DEPTH: 325 mm (385 mm if forward positioning)
UPPER LID DEPTH: 75 mm (15 mm if forward positioning)
Models
Internal dimensions
L Length
in
W Width
in
D Depth
in
Lid
in
Base
in
External dimensions
L Length
22 7/8 in
W Width
15 in
D Depth
17 15/16 in
Other data
Weight empty
20.28 lbs
Weight with foam
lbs
Weight with custom foam
lbs
Volume
gal
Buoyancy
lbs/max
Operating temperature
°F min -27.4 / max 194
REINFORCED PADLOCKABLE POINTS
Stainless steel clip-covers, to grant a better resistance to abrasion.
SELF OILING FREE RUNNING WHEELS
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
SEALING O-RING
(Art. NEOSEAL + nr. art.)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
LID CAN BE SET TO SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
ABILITY TO STACK
The special design of the bottom and the lid feet, grants a perfect stackability.
FRONT LID O-RING
Both the top and front lids are equipped with a polyurethane sealing o-rings, that make the case to be completely waterproof.
SIDE HANDLES
Two side handles allow an easy transportation.
REMOVABLE TOP LID
By releasing the screw both, the top and front lids can be slide off.
REMOVABLE FRONT LID
By releasing the screw both, the top and front lids can be slide off.
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIN.1093
Fixed divider for upper compartment – mod. 5140
Includes:
1 plastic divider
6 screws
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1077
Vertical sliding frontal latch for model 5140 - green slide
Includes:
1 black latch
2 fixing pins
KIN.1306
Extractable handle for mod. 5140 (new version)
Includes:
1 black extractable handle
1 black protective cover
15 screws
KIN.1197
Side handle for models 5140 (new version) and 9433
Includes:
1 black handle
2 fixing pins
KIN.1031
Wheels for model 5140
Includes:
2 self-oiling wheels
1 metal washer
1 snap ring (Seeger)
1 fixing pin
KIN.0446
Easy-opening latch for models from 3818 up
Includes:
1 black latch
1 fixing pin
KIN.0497
Name tag holder for models 1908-1913-2209-2214-3005-5140
Includes:
1 transparent PP name tag holder
KIN.0495
Manual pressure release valve for models from 2712 up (except mod. 3005)
Includes:
1 black purge valve (+ o-ring + pin)
1 threaded bush
1 snap ring (Seeger)
