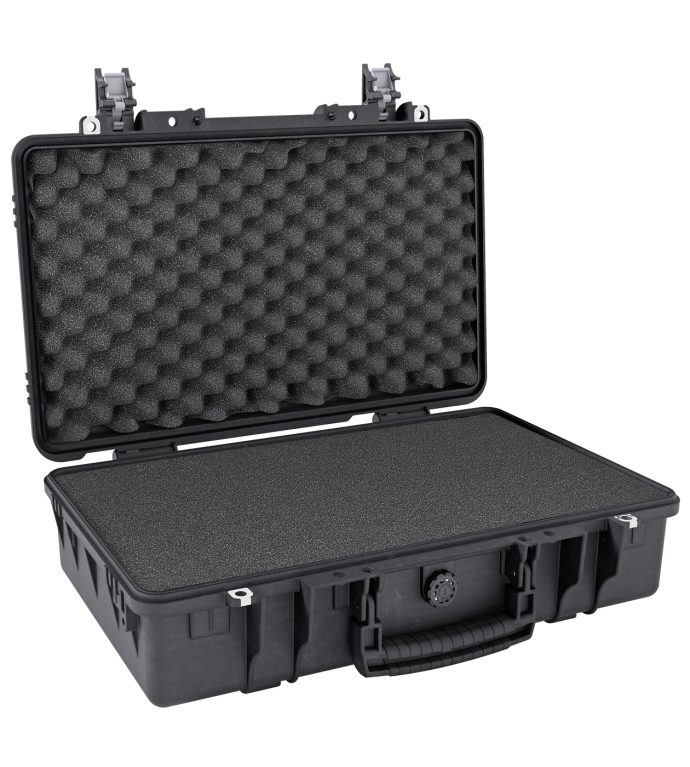

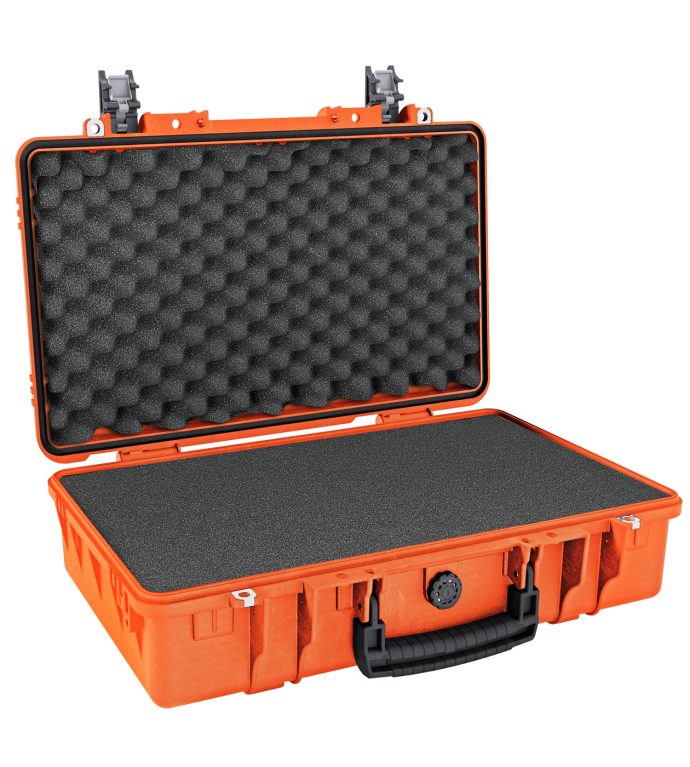

5212HL
Medium size watertight case, injected with proprietary copolymer PP that makes it more resistant and lightweight than other similar products. IP67 and MIL Stan certified to be resistant to impact, liquids, shocks.
Ideal container for mechanical equipment, optical equipment and electronic devices, valuables, outdoor equipment and more.
•Metal reinforced padlock holes
•Single block high performance injected O-ring
•Automatic pressure valve
•Soft rubber handle grip
•Removable lid
* Pending certification release
Internal dimensions
L Length
20 1/2 in
W Width
11 1/4 in
D Depth
4 15/16 in
Lid
1 3/16 in
Base
3 3/4 in
External dimensions
L Length
21 5/8 in
W Width
13 3/4 in
D Depth
5 11/16 in
Other data
Weight empty
5.18 lbs
Weight with foam
6.28 lbs
Weight with custom foam
lbs
Volume
4.88 gal
Buoyancy
27.99 lbs/max
Operating temperature
°F min -27.4 / max 194
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
FIXING POINTS
Additional fixing points on the lid, available on certain models
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
SEALING O-RING
(Art. NEOSEAL + nr. art.)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
LID CAN BE SET TO SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
SOFT GRIP RUBBER HANDLE
Load tested handle, reinforced with corrosion proof steel pins
AUTOMATIC PURGE VALVE
Automatic pressure release valve.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
