5218

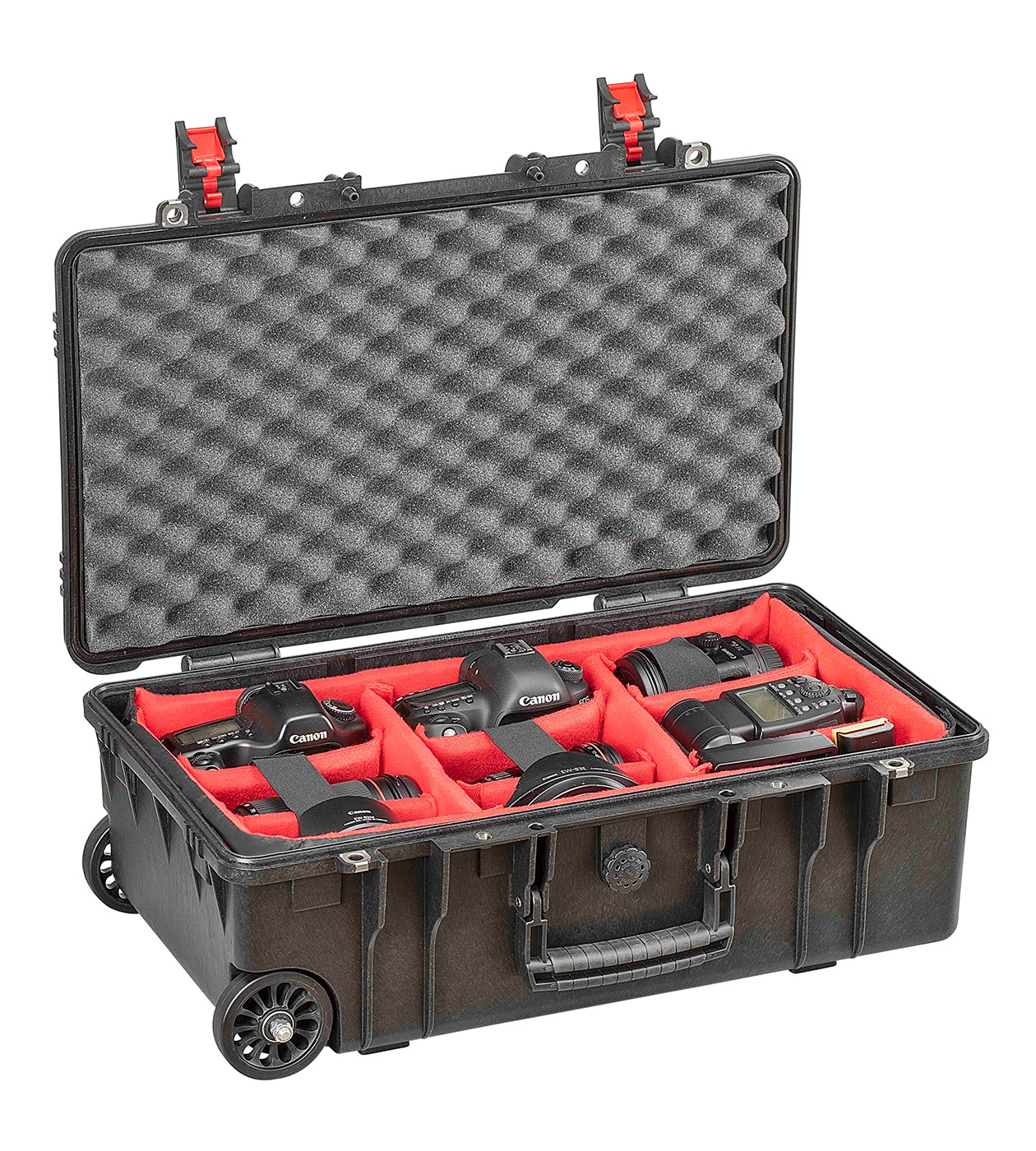

Durable trolleys with wheels with ball bearings and extractable handles. They can accommodate mid size cameras and gear.
<p>Lightweight cabin luggage with padded divider insert with adjustable partitions (art. DIV52) and convoluted foam in the lid.<br />
This hand-carry trolley complies with Ryanair, Vueling and other low-cost airlines’ size restrictions.<br />
Ideal to store medium format digital cameras, lenses, flashes and other accessories.</p>
This hand-carry trolley complies with Ryanair, Vueling and other low-cost airlines’ size restrictions.<br />
Ideal to store medium format digital cameras, lenses, flashes and other accessories.</p>
Internal dimensions
L Length
20 1/2 in
W Width
11 1/4 in
D Depth
7 1/16 in
Lid
1 3/16 in
Base
5 7/8 in
External dimensions
L Length
21 5/8 in
W Width
13 3/4 in
D Depth
7 7/8 in
Other data
Weight empty
8.26 lbs
Weight with foam
9.47 lbs
Weight with custom foam
lbs
Volume
7.02 gal
Buoyancy
44.09 lbs/max
Operating temperature
°F min -27.4 / max +194
Internal dimensions
L Length
520 mm
W Width
285 mm
D Depth
180 mm
Lid
30 mm
Base
150 mm
External dimensions
L Length
550 mm
W Width
350 mm
D Depth
200 mm
Other data
Weight empty
3.75 Kg
Weight with foam
4.30 Kg
Weight with custom foam
Kg
Volume
26.6 lt
Buoyancy
20 Kg/max
Operating temperature
°C min -33 / max +90
LID CAN BE SET SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
REINFORCED PADLOCKABLE POINTS
Stainless steel clip-covers, to grant a better resistance to abrasion.
EASY TO OPEN RELEASE TELESCOPIC HANDLE (5218-5221)
PULL RELEASE LATCH
New pull release latch grants additional safety and avoids accidental opening
SHIPPING LABEL HOLDER (OPTIONAL)
Polycarbonate removable label
AUTOMATIC VALVE
Automatic pressure release valve.
SOFT GRIP HANDLE
Load tested handle, reinforced with corrosion proof steel pins
SELF OILING FREE RUNNING WHEELS
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
SEALING O-RING
(Art. NEOSEAL + nr. art.)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
WRITABLE NAME TAG
PVC waterproof ID removable label
BACKPACK CABIN
HANDY BACKPACK CARRYING SYSTEM FOR CASES 5218-5221
This practical kit adds backpack transportability to the models 5218 and 5221.
Generously and ergonomically padded for maximum comfort.
Detachable lap belt. Quickly attachable and removable.
The backpack harness can be stored inside or outside of the case, in its dedicated handy pouch.
DIV52
PADDED DIVIDER FOR 5218-5221
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
PANEXPL52
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 5218 and 5221.
Color: black.
FOAM.5221
FOAM SET FOR CASE 5221
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 5221 model.
Color: dark grey.
DOWNLOAD PDF
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
BACKPACK L
HANDY BACKPACK CARRYING SYSTEM FOR CASES
Made of robust tear resistant polyester. Designed with adjustable and comfortable padded shoulder straps and belt.
Provided with an external pocket for small accessories, with Velcro strap.
Ideal wherever a free hand movement is required, like in outdoor activities, extreme sports, emergency, rescue, trekking, industrial field, etc.
Suitable for models 3317W, 4412, 4419 and 4820.
Color: black.
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1206
Rubber coated handle for models 4216-5218-5221
Includes:
1 military green handle
2 fixing pins
KIN.1204
Extractable handle for models 5218-5221
Includes:
1 desert tan extractable handle
10 fixing screws
KIN.1203
Extractable handle for models 5218-5221
Includes:
1 military green extractable handle
10 fixing screws
KIN.1224
transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433
Includes:
1 transparent label holder
KIN.1216
Wheels for models 5218-5221
Includes:
2 wheels with bearings
2 self-locking nuts
1 threaded rod
KIN.1209
Red trigger pull release latch for models 4209-4216-5218-5221
Includes:
1 black latch
1 fixing pin
KIN.1202
Extractable handle for models 5218-5221
Includes:
1 black extractable handle
10 fixing screws
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
