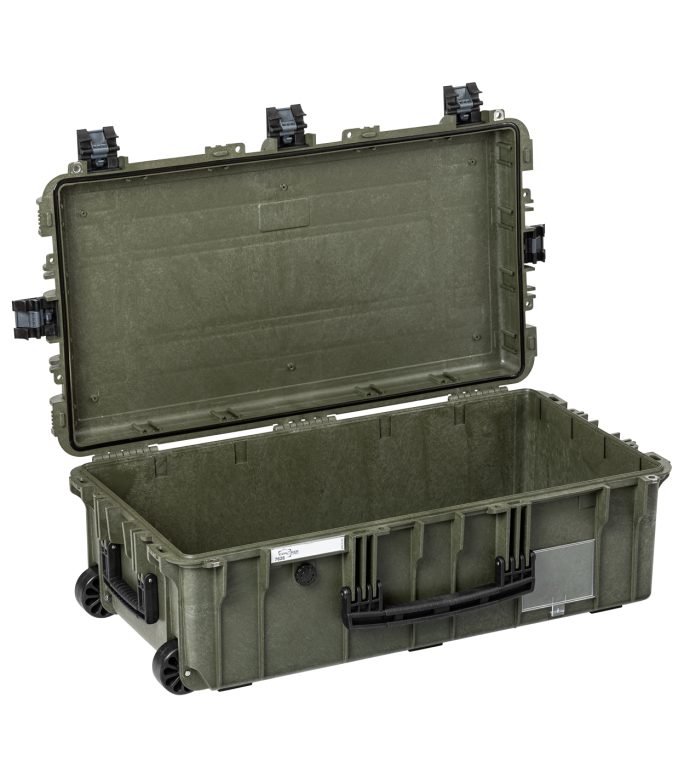

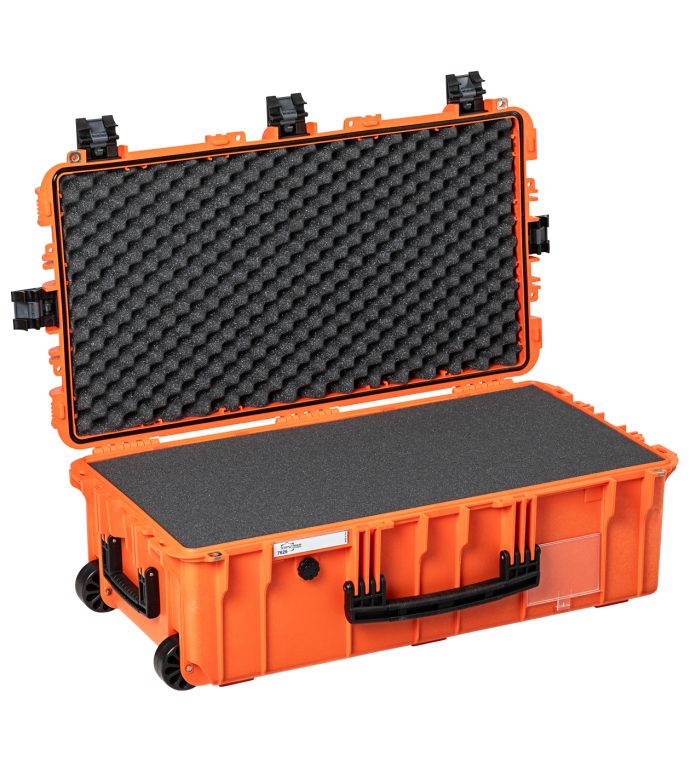

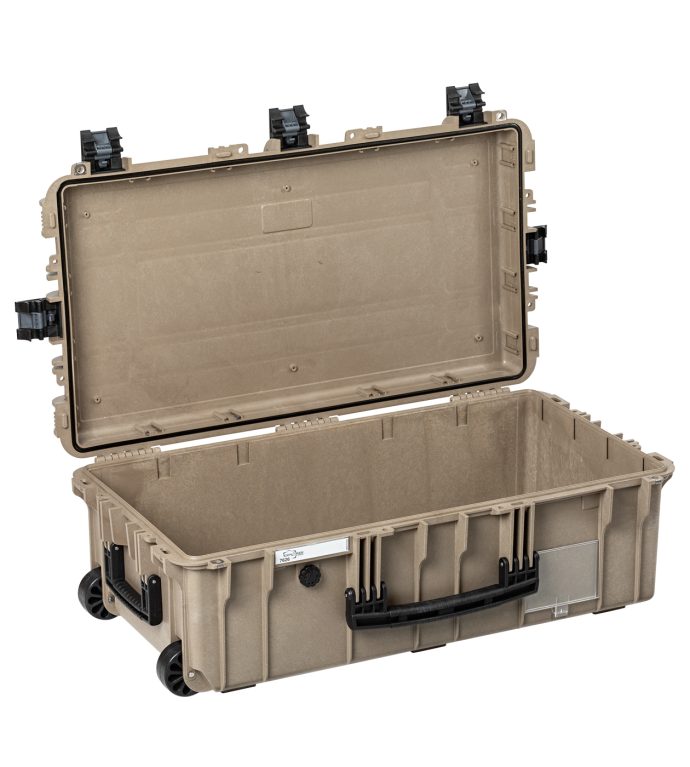

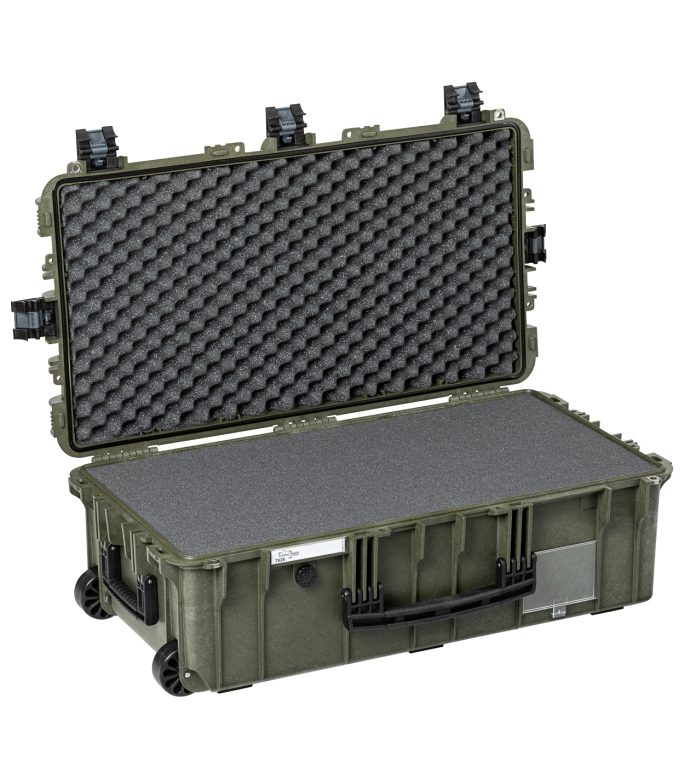

7626HL
Large cases IP67 certified. Two man lift side handles and retractable handle. Self-oiling free running wheels. Four colors available and two internal standard configurations.
Internal dimensions
L Length
30 1/16 in
W Width
15 11/16 in
D Depth
10 1/4 in
Lid
1 15/16 in
Base
8 1/4 in
External dimensions
L Length
32 3/4 in
W Width
18 3/8 in
D Depth
11 in
Other data
Weight empty
16.97 lbs
Weight with foam
20.94 lbs
Weight with custom foam
lbs
Volume
20.92 gal
Buoyancy
126.77 lbs/max
Operating temperature
°F min -27.4 / max 194
Internal dimensions
L Length
763 mm
W Width
399 mm
D Depth
260 mm
Lid
50 mm
Base
210 mm
External dimensions
L Length
832 mm
W Width
466 mm
D Depth
279 mm
Other data
Weight empty
7.7 Kg
Weight with foam
9.5 Kg
Weight with custom foam
Kg
Volume
79.2 lt
Buoyancy
57.5 Kg/max
Operating temperature
°C min -33 / max 90
SELF OILING FREE RUNNING WHEELS
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LARGE FRONT HANDLE
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
SEALING O-RING
(Art. NEOSEAL + nr. art.)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
FOAM.7626
FOAM SET FOR CASE 7626
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 7626 model.
Color: dark grey.
DOWNLOAD PDF
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1381
Wheels for models 7626-7635-9433
Includes:
2 wheels with bearings
2 snap rings (Seeger)
2 fixing pins
KIN.1115
Red trigger pull release latch for models 7626-7635
Includes:
1 desert tan latch
1 fixing pin
KIN.1114
Red trigger pull release latch for models 7626-7635
Includes:
1 military green latch
1 fixing pin
KIN.1370
Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527
Includes:
1 orange handle
2 fixing pins
KIN.1368
Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527
Includes:
1 military green handle
2 fixing pins
KIN.1366
Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527
Includes:
1 desert tan handle
2 fixing pins
KIN.1364
Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527
Includes:
1 black handle
2 fixing pins
KIN.1363
Extractable handle for models 7626-7635
Includes:
1 military green extractable handle
10 fixing screws
KIN.1362
Extractable handle for models 7626-7635
Includes:
1 desert tan extractable handle
10 fixing screws
KIN.1361
Extractable handle for models 7626-7635
Includes:
1 black extractable handle
10 fixing screws
KIN.1360
Extractable handle for models 7626-7635
Includes:
1 orange extractable handle
10 fixing screws
KIN.1369
Rubber coated handle for models 7626-7635-9433
Includes:
1 military green handle
2 fixing pins
KIN.1224
transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433
Includes:
1 transparent label holder
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
