7630.B.15U

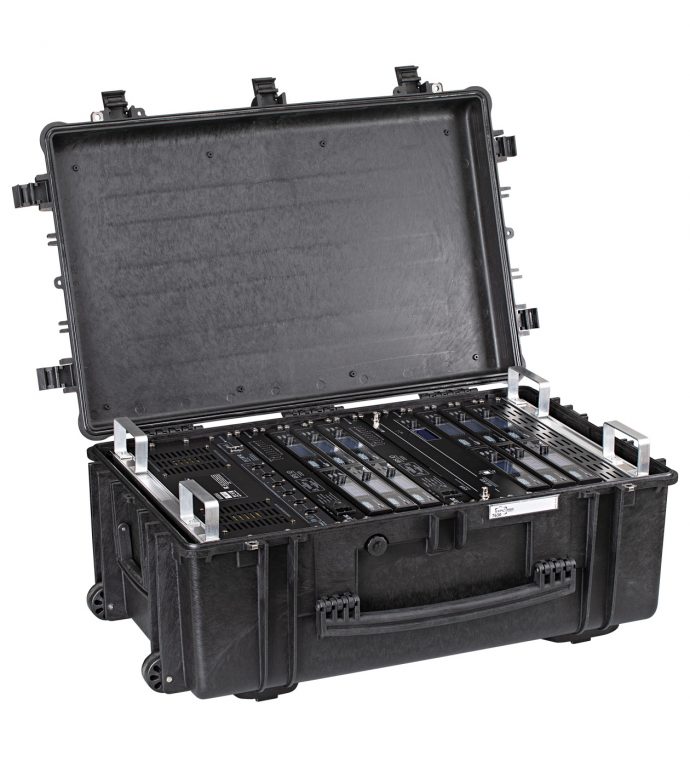

15U (units) rack-size waterproof case with wheels and trolley handle.
This model is provided with an internal alu racking frame that can be pulled out by mean of the practical handles, for cabling or stand-alone use.
Lids can be left in position or completely removed for an easier use on location.
The provided M6 Cage Nuts and screws grants practical mounting of any device.
RACK LENGTH: 220 mm
LID DEPTH: 65 mm
Models
Internal dimensions
L Length
30 1/8 in
W Width
19 1/8 in
D Depth
12 in
Lid
2 3/8 in
Base
9 5/8 in
External dimensions
L Length
33 7/8 in
W Width
22 1/16 in
D Depth
14 in
Other data
Weight empty
36.59 lbs
Weight with foam
lbs
Weight with custom foam
lbs
Volume
29.85 gal
Buoyancy
180.33 lbs/max
Operating temperature
°F min -27.4 / max 194
Internal dimensions
L Length
765 mm
W Width
485 mm
D Depth
305 mm
Lid
60 mm
Base
245 mm
External dimensions
L Length
860 mm
W Width
560 mm
D Depth
355 mm
Other data
Weight empty
16.6 Kg
Weight with foam
Kg
Weight with custom foam
Kg
Volume
113.1 lt
Buoyancy
81.8 Kg/max
Operating temperature
°C min -33 / max 90
SELF OILING FREE RUNNING WHEELS
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LARGE FRONT HANDLE
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
RETRACTABLE HANDLE
TWO MAN LIFT SIDE HANDLES
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
GBAG 76
PADDED GUN BAG FOR CASES 7630-7641 AND 7814
Padded gunbag to protect SMG guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 76 is designed to perfectly fit into Explorer Cases models 7630 (up to 6 pieces) 7641 (up to 8 pieces) and 7814 (1 piece). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper. Designed to protect and transport critical gear. This gun bag comes with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
COV48-76
TOP COVER FOR DIV4820-DIV7630 AND DIV7641
Top covers available for larger models: they can be easily fixed on the dividers by Velcro strips. Ideal to protect and keep items in place.
DIV7630
PADDED DIVIDER FOR 7630
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
PANEXPL76
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 7630 and 7641.
Color: black.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
FOAM.7630
FOAM SET FOR CASE 7630
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 7630 model.
Color: dark grey.
DOWNLOAD PDF
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1364
Side handle for mod. 5822-5823-5833-7626-7630-7635-7641-7726-7745-13513-13527
Includes:
1 black handle
2 fixing pins
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
KIN.0412
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 black handle
2 fixing pins
KIN.0425
Handle for mod. 7630-7726-7745-11413-13513-13527-15416-10826-10840-MUB78
Includes:
1 black handle
2 fixing pins
KIN.0522
Wheels for models 5326-5823-5833-7630-7641-7726-7745
Includes:
2 self-oiling wheels
4 metal washers
2 snap rings (Seeger)
2 fixing pins
KIN.0837
Extractable handle + wheels for models 7630-7641
Includes:
1 black extractable handle
1 black protective cover
1 metal spring
1 lock/unlock lever
1 small cover cap
4 fixing pins
4 metal washers
4 snap rings (Seeger)
2 self-oiling wheels
12 fixing screws
KIN.0415
Extractable handle for mod. 7630 (previous version) and MUB78
Includes:
1 black handle
2 fixing pins
2 torsion springs
