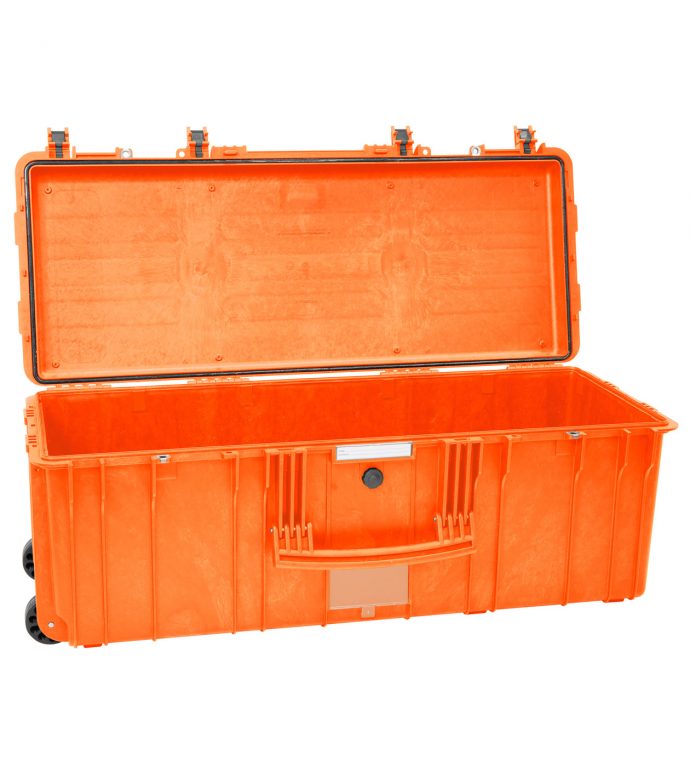

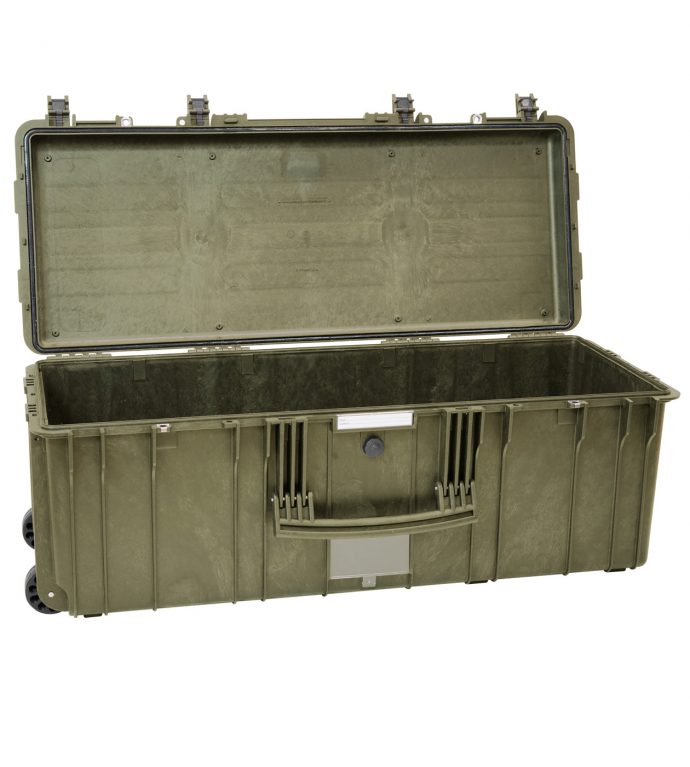

9433
Double depth waterproof cases to accommodate lighting instrumentation.
Internal dimensions
L Length
36 7/8 in
W Width
13 3/4 in
D Depth
13 in
Lid
1 5/8 in
Base
11 5/16 in
External dimensions
L Length
39 3/4 in
W Width
16 1/4 in
D Depth
13 15/16 in
Other data
Weight empty
22.48 lbs
Weight with foam
27.99 lbs
Weight with custom foam
lbs
Volume
28.53 gal
Buoyancy
187.17 lbs/max
Operating temperature
°F min -27.4 / max 194
Internal dimensions
L Length
936 mm
W Width
350 mm
D Depth
330 mm
Lid
42 mm
Base
288 mm
External dimensions
L Length
1009 mm
W Width
412 mm
D Depth
354 mm
Other data
Weight empty
10.2 Kg
Weight with foam
12.7 Kg
Weight with custom foam
Kg
Volume
108 lt
Buoyancy
84.9 Kg/max
Operating temperature
°C min -33 / max 90
PULL RELEASE LATCH
New pull release latch grants additional safety and avoids accidental opening
AUTOMATIC VALVE
Automatic pressure release valve.
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LARGE FRONT HANDLE
SEALING O-RING
(Art. NEOSEAL + nr. art.)
STAINLESS STEEL REINFORCED PADLOCKABLE POINTS
4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.
ABILITY TO STACK
The special design of the bottom and the lid feet, grants a perfect stackability.
METAL CLIPS
Clips metálicos reforzados en los principales puntos para candados.
WHEELS
4 self-oiling free running wheels

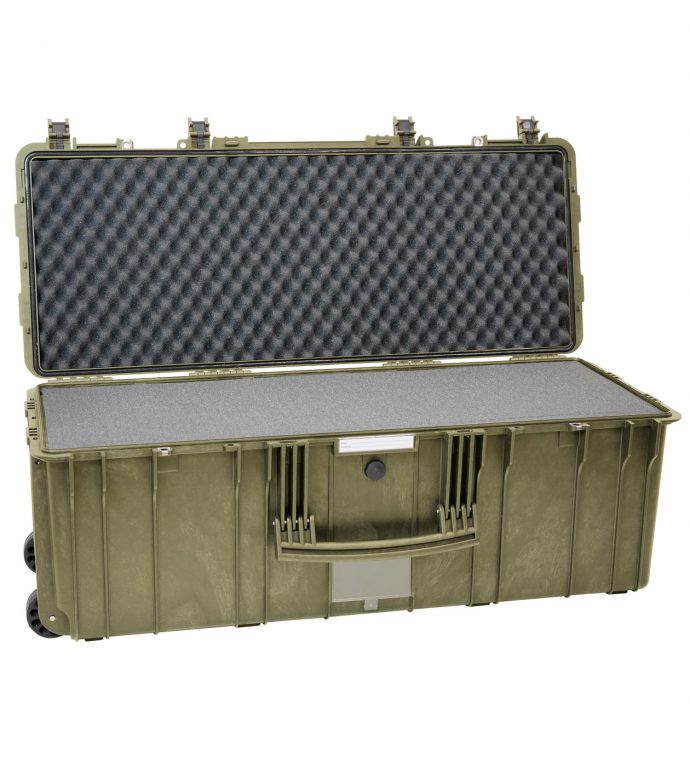

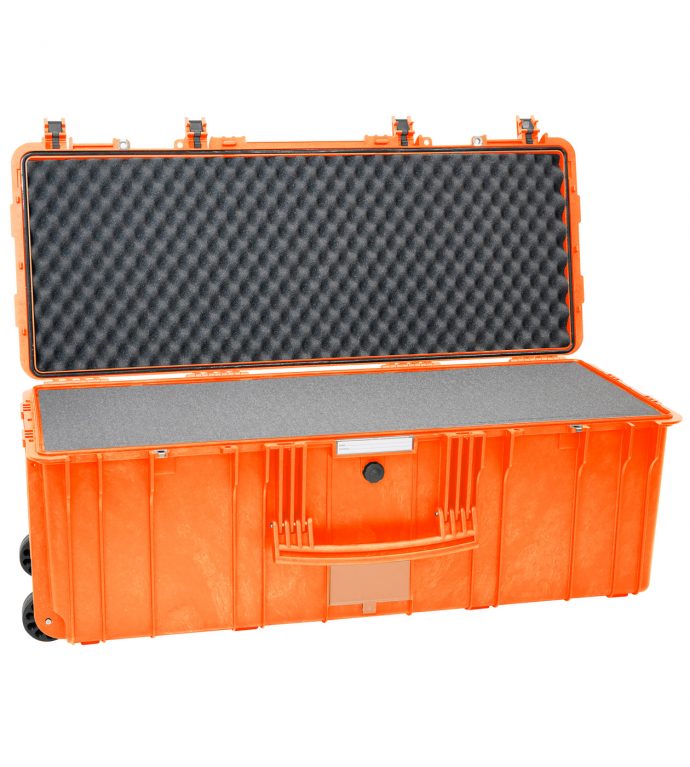

FOAM.9433
FOAM SET FOR CASE 9433
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 9433 model.
Color: dark grey.
DOWNLOAD PDF
GSLEEVE 94
PADDED GUN BAG FOR CASE 9413
Designed to secure your valuable rifle and accessories, the new G Sleeve bags provide protection in a highly mobile condition.
A lightweight ruggedized 600D polyester outer fabric protects from humidity, while a padded interior keeps your rifle well protected.
The internal rifle retention straps and the neoprene side flaps keep your firearm properly fixed.
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
GBAG 94
PADDED GUN BAG FOR CASES 9413-9433
Padded gunbag to protect long guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 94 is designed to perfectly fit into Explorer Cases models 9413-9433 (up 3 pcs). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper for the main compartment. The main compartment features two neoprene hook-and-loop side flaps and adjustable straps to secure firearms. The front central compartment is equipped with adjustable interior straps to secure rifle position. The two side smaller pouches are designed to storage accessories and ammunitions. Both the main and front compartments are padded on all sides to protect and transport critical gear. This long gun bag features top and bottom compression straps and come with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
The gunbag can easily become a backpack by fixing the BACKPACK KIT in its rear side (see BACKPACK KIT accessory in BACKPACK SYSTEMS section for more details).
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.DL
DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840
Kit includes 2 pcs.
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1381
Wheels for models 7626-7635-9433
Includes:
2 wheels with bearings
2 snap rings (Seeger)
2 fixing pins
KIN.1283
Grey trigger pull release latch for models 7814-9413-9433-11413-13513-13527
Includes:
1 black latch
1 fixing pin
KIN.1369
Rubber coated handle for models 7626-7635-9433
Includes:
1 military green handle
2 fixing pins
KIN.1224
transparent polycarbonate shipping label holders for mod. 5218-5221-7626-7635-7726-7745-9433
Includes:
1 transparent label holder
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
