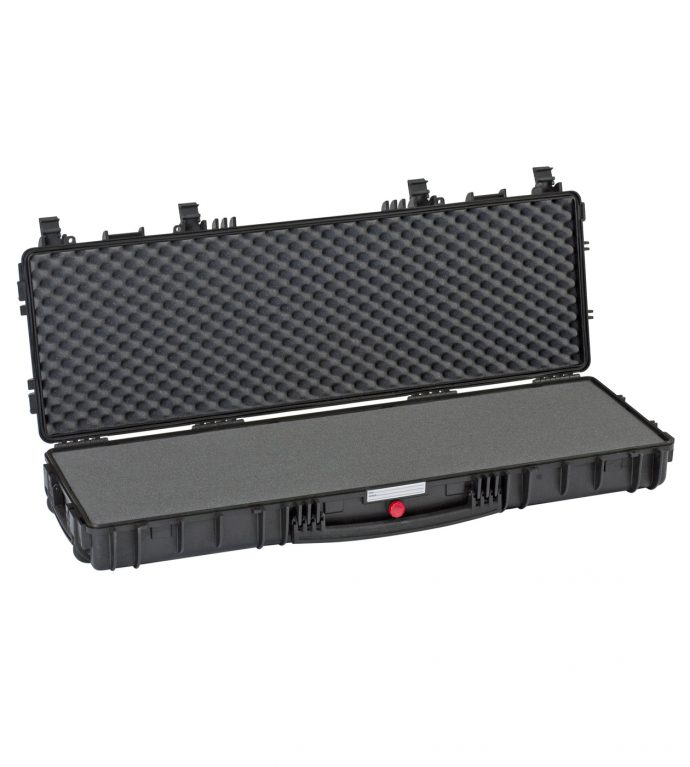

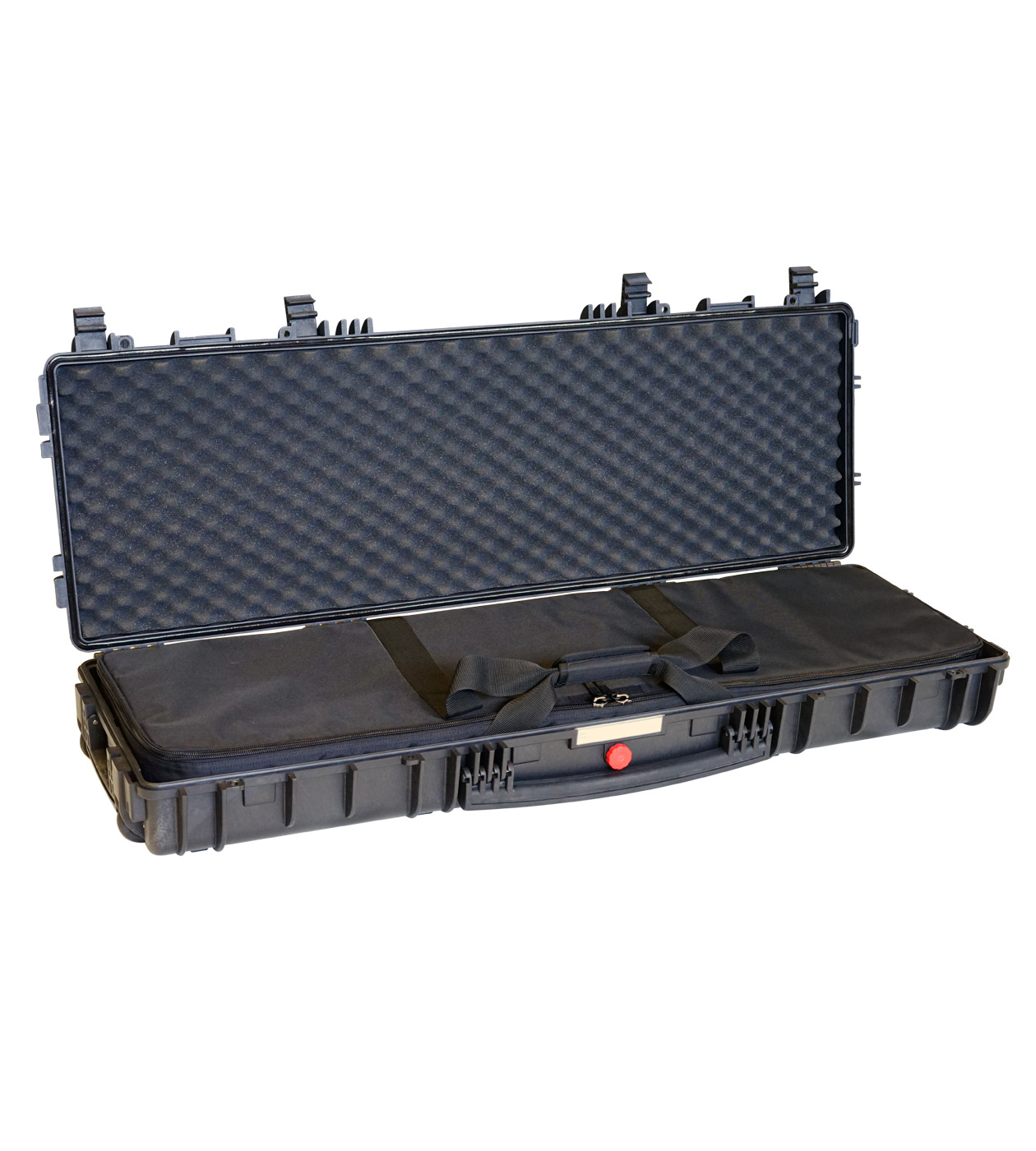

RED11413
Tactical gun cases for hunting guns, archery, etc.
Internal dimensions
L Length
44 3/4 in
W Width
13 3/4 in
D Depth
5 5/16 in
Lid
1 5/8 in
Base
3 11/16 in
External dimensions
L Length
46 13/16 in
W Width
16 5/16 in
D Depth
6 1/4 in
Other data
Weight empty
17.19 lbs
Weight with foam
19.40 lbs
Weight with custom foam
lbs
Volume
14.18 gal
Buoyancy
73.41 lbs/max
Operating temperature
°F min -27.4 / max +194
LARGE FRONT HANDLE
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
TWO MAN LIFT SIDE HANDLES
WHEELS WITH BEARINGS
ABILITY TO STACK
The special design of the bottom and the lid feet, grants a perfect stackability.
WRITABLE NAME TAG
PVC waterproof ID removable label
AIBOX3.E
TOOL ORGANIZER WITH LID
Polypropylene tool organizer, specifically designed to contain all kind of components and accessories. Practical handle and semi-transparent lid. It can be easily inserted into the model 5140 by simply removing the sliding-off lid.
The AIBOX3.E comes empty.
Int. Dim.: 467x255x30 mm
BACKPACK KIT
HANDY BACKPACK CARRYING SYSTEM FOR GUNBAGS
Practical and easy to fix kit to turn the gunbags into backpacks to safely transport your rifles.
The detachable, padded shoulder straps, clip right in the back of the gunbags D-rings.
The ergonomic straps are designed to be fully adjustable in length.
It works on GUNBAG 94, GUNBAG 114, GUNBAG 135 and GUNBAG 108.
Color: black.
GBAG 94
PADDED GUN BAG FOR CASES 9413-9433
Padded gunbag to protect long guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 94 is designed to perfectly fit into Explorer Cases models 9413-9433 (up 3 pcs). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper for the main compartment. The main compartment features two neoprene hook-and-loop side flaps and adjustable straps to secure firearms. The front central compartment is equipped with adjustable interior straps to secure rifle position. The two side smaller pouches are designed to storage accessories and ammunitions. Both the main and front compartments are padded on all sides to protect and transport critical gear. This long gun bag features top and bottom compression straps and come with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
The gunbag can easily become a backpack by fixing the BACKPACK KIT in its rear side (see BACKPACK KIT accessory in BACKPACK SYSTEMS section for more details).
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.DL
DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840
Kit includes 2 pcs.
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
FOAM.11413
FOAM SET FOR CASE 11413
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 11413 model.
Color: dark grey.
DOWNLOAD PDF
FOAM.13513
FOAM SET FOR CASE 13513
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 13513 model.
Color: dark grey.
DOWNLOAD PDF
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
GBAG 135
PADDED GUN BAG FOR CASE 13513 AND 13527
Padded gunbag to protect long guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 135 is designed to perfectly fit into Explorer Cases models 13513 and 13527 (up to two pieces). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper for the main compartment. The main compartment features two neoprene hook-and-loop side flaps and adjustable straps to secure firearms. The front central compartment is equipped with adjustable interior straps to secure rifle position. The two side smaller pouches are designed to storage accessories and ammunitions. Both the main and front compartments are padded on all sides to protect and transport critical gear. This long gun bag features top and bottom compression straps and come with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band. Full-opening zipper for shooting mat configuration.
The gunbag can easily become a backpack by fixing the BACKPACK KIT in its rear side (see BACKPACK KIT accessory in BACKPACK SYSTEMS section for more details).
GBAG 114
PADDED GUN BAG FOR CASE 11413
Padded gunbag to protect long guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 114 is designed to perfectly fit into Explorer Cases model 11413. The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper for the main compartment. The main compartment features two neoprene hook-and-loop side flaps and adjustable straps to secure firearms. The front central compartment is equipped with adjustable interior straps to secure rifle position. The two side smaller pouches are designed to storage accessories and ammunitions. Both the main and front compartments are padded on all sides to protect and transport critical gear. This long gun bag features top and bottom compression straps and come with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
The gunbag can easily become a backpack by fixing the BACKPACK KIT in its rear side (see BACKPACK KIT accessory in BACKPACK SYSTEMS section for more details).
KIN.0545
Wheels for models 9413-11413-13513
Includes:
2 wheels with bearings
2 snap rings (Seeger)
2 fixing pins
KIN.0496
Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78
Includes:
1 transparent name tag holder
KIN.0497
Name tag holder for models 1908-1913-2209-2214-3005-5140
Includes:
1 transparent PP name tag holder
