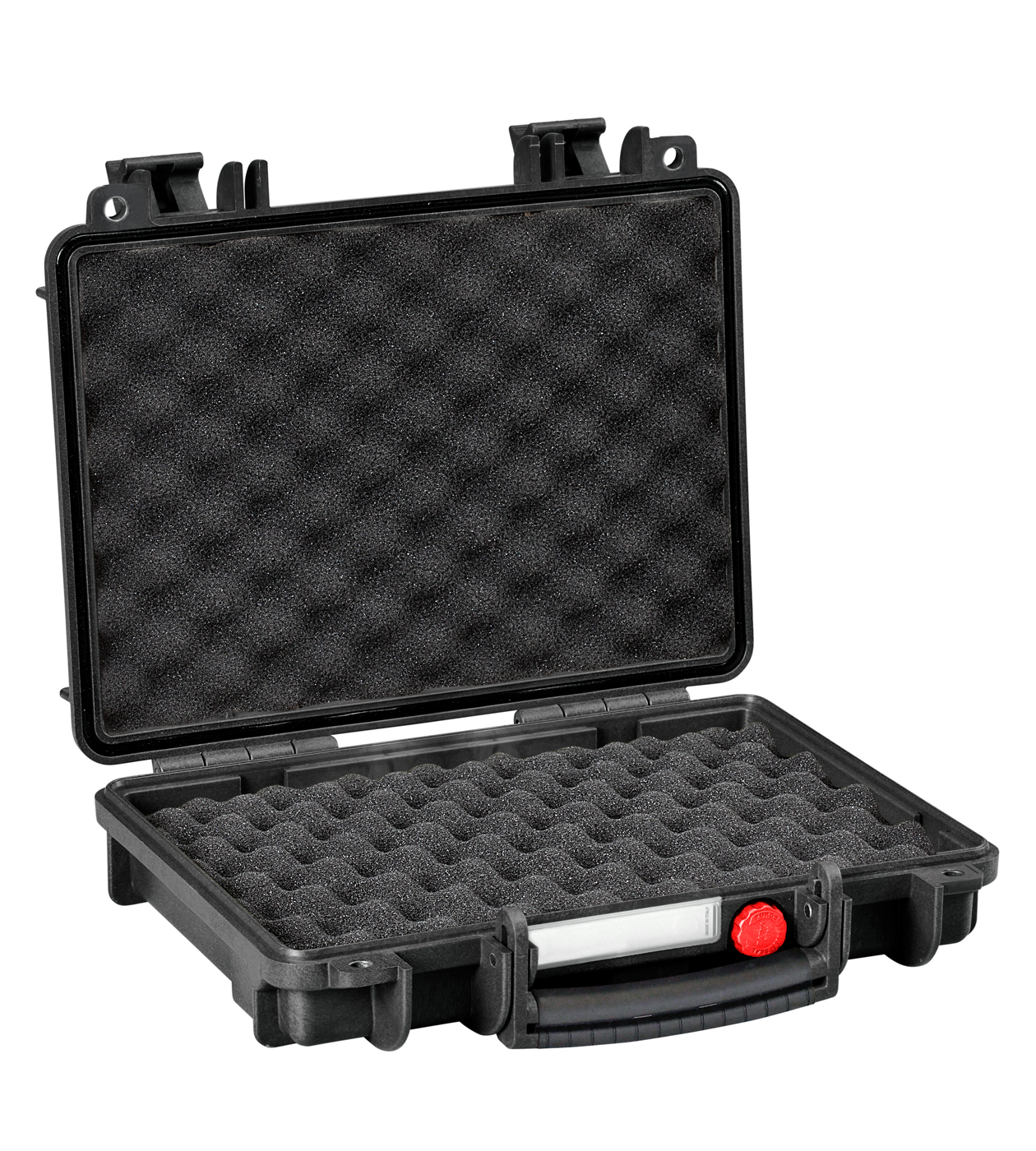

RED3005
Tactical pistol cases
Internal dimensions
L Length
11 13/16 in
W Width
8 1/4 in
D Depth
2 5/16 in
Lid
13/16 in
Base
1 1/2 in
External dimensions
L Length
12 13/16 in
W Width
10 9/16 in
D Depth
2 15/16 in
Other data
Weight empty
2.42 lbs
Weight with foam
2.64 lbs
Weight with custom foam
lbs
Volume
1.05 gal
Buoyancy
4.62 lbs/max
Operating temperature
°F min -27.4 / max 194
Internal dimensions
L Length
300 mm
W Width
210 mm
D Depth
58 mm
Lid
20 mm
Base
38 mm
External dimensions
L Length
326 mm
W Width
269 mm
D Depth
75 mm
Other data
Weight empty
1.10 Kg
Weight with foam
1.20 Kg
Weight with custom foam
Kg
Volume
4 lt
Buoyancy
2.10 Kg/max
Operating temperature
°C min -33 / max 90
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
COUNTERBALANCE SUPPORTS
(in certain models)
