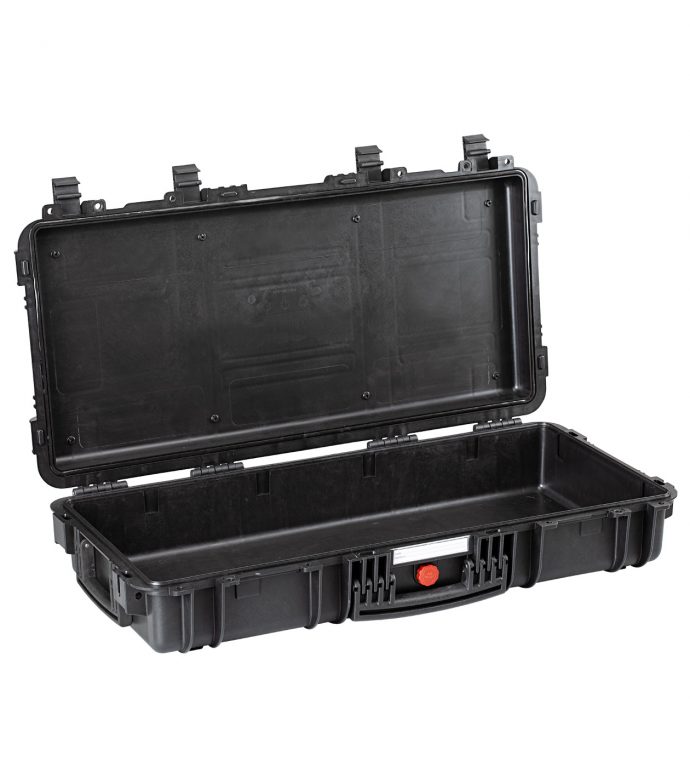

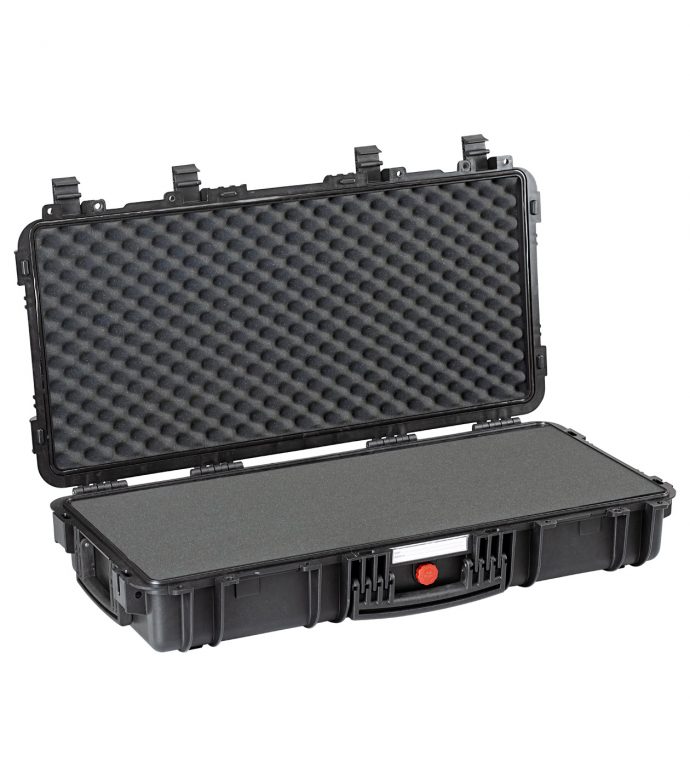

RED7814
Tactical gun cases for hunting guns, archery, etc.
Internal dimensions
L Length
30 11/16 in
W Width
13 3/4 in
D Depth
5 11/16 in
Lid
1 5/8 in
Base
4 1/16 in
External dimensions
L Length
33 5/16 in
W Width
16 13/16 in
D Depth
6 9/16 in
Other data
Weight empty
12.12 lbs
Weight with foam
14.11 lbs
Weight with custom foam
lbs
Volume
10.46 gal
Buoyancy
55.77 lbs/max
Operating temperature
°F min -27.4 / max 194
Internal dimensions
L Length
780 mm
W Width
350 mm
D Depth
145 mm
Lid
42 mm
Base
103 mm
External dimensions
L Length
846 mm
W Width
427 mm
D Depth
167 mm
Other data
Weight empty
5.50 Kg
Weight with foam
6.40 Kg
Weight with custom foam
Kg
Volume
39.6 lt
Buoyancy
25.3 Kg/max
Operating temperature
°C min -33 / max 90
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
LARGE FRONT HANDLE
LATCH
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
OPTIONAL SHOULDER STRAP (universal)
(art. SHOULDERKIT.U)
GBAG 76

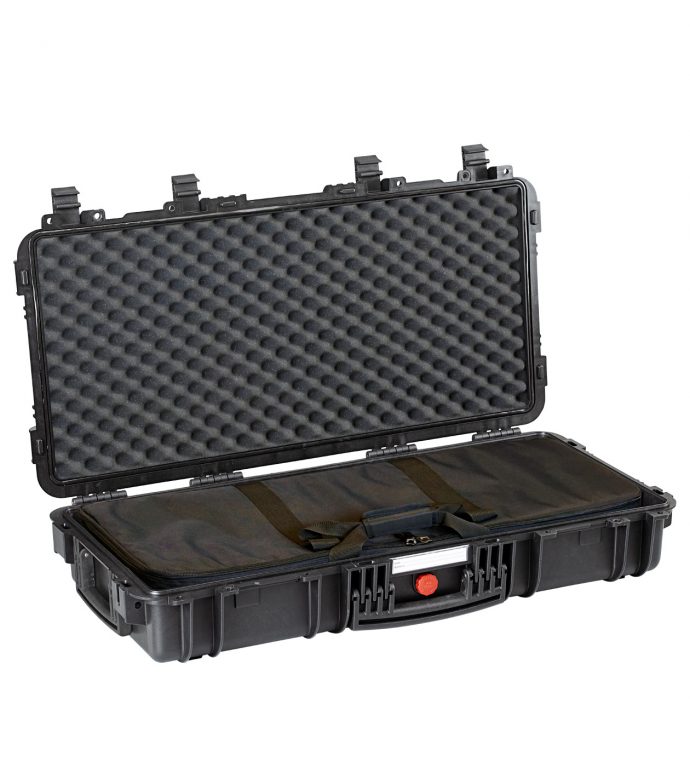

PADDED GUN BAG FOR CASES 7630-7641 AND 7814
Padded gunbag to protect SMG guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 76 is designed to perfectly fit into Explorer Cases models 7630 (up to 6 pieces) 7641 (up to 8 pieces) and 7814 (1 piece). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper. Designed to protect and transport critical gear. This gun bag comes with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
